Display of the instrument cluster.

Hello guys,
I am wondering about the display in the instrument cluster whether it is with colours or just amber. I am sure that if someone chooses the 8,8 navigation setup with the extended display, it's going to be with colours. I am also pretty sure from pics I have seen in the web that the display is plain (just amber) when the car does not have navigation at all. I am not sure though what is the case of the display when the car has entry level navigation. From pics I have seen in the net, it seems to me that the display has colours and it is not just amber. Anyone to shed some light on ? Thank you in advance !
Appreciate 0
      12-15-2015, 04:57 AM   #2
washy
Captain
washy's Avatar
United Kingdom
212
Rep
745
Posts

Drives: M2c/S1000RR
Join Date: Jan 2008
Location: UK

iTrader: (0)

The loan X1 we have has the basic navigation and instrument cluster. I will take some pictures later for you to see, but the majority of the dash is amber the little display between the dials does show other colours as it has a blue display in eco pro mode and the speed limit signs show up in the correct colour.
__________________
'17 S1000RR , '19 M2 Competition HS
Appreciate 0
      12-15-2015, 05:03 AM   #3
alex4nder
New Member
6
Rep
28
Posts

Drives: BMW X1 F48
Join Date: Dec 2015
Location: Greece

iTrader: (0)

Road signs ? So the car has driving assistant which includes extended instrument cluster, same as if someone has the 8,8 navigation setup. I think that coloured center display goes together with the extended instrument cluster, which comes two ways whether driving assistant or 8,8 navigation. I am talking about having neither of the two, just entry level navigation.

Last edited by alex4nder; 12-15-2015 at 05:17 AM..
Appreciate 0
      12-15-2015, 09:31 AM   #4
alex4nder
New Member
6
Rep
28
Posts

Drives: BMW X1 F48
Join Date: Dec 2015
Location: Greece

iTrader: (0)

Went to the dealer and sorted it out. Here is how it goes, at least for configurations in my country. I am talking about the display positioned between the rev. dial and the speed dial. Models WITHOUT navigation NOR driver assistant get a display with amber indications.
Models WITHOUT navigation WITH driver assistant get the extended instrument cluster wich includes this display in coloured indications.
Models WITH entry level 6,6 navigation WITHOUT driver assistant get a coloured display.
Models WITH entry level 6,6 navigation WITH driver assistant get the extended instrument cluster wich includes this display in coloured indications.
Models WITH 8,8 navigation WITH/WITHOUT driver assistant get the extended instrument cluster wich includes this display in coloured indications.
Useful piece of information for me as I did not go for the 8,8 navigation nor for the driver assistant but I wanted the display to be in colour as it feels more upmarket and modern !
Cheers
Appreciate 0
      12-15-2015, 09:42 AM   #5
washy
Captain
washy's Avatar
United Kingdom
212
Rep
745
Posts

Drives: M2c/S1000RR
Join Date: Jan 2008
Location: UK

iTrader: (0)

Quote:
Originally Posted by alex4nder View Post
Road signs ? So the car has driving assistant which includes extended instrument cluster, same as if someone has the 8,8 navigation setup. I think that coloured center display goes together with the extended instrument cluster, which comes two ways whether driving assistant or 8,8 navigation. I am talking about having neither of the two, just entry level navigation.
The car we have is a bit of an oddity as it is dealer launch spec. For whatever reason it has the speed limit display, but nothing else form the driving assistant. It also does not have the extended instrument cluster. Along with this the car only has the basic navigation.
__________________
'17 S1000RR , '19 M2 Competition HS
Appreciate 0
      12-15-2015, 09:47 AM   #6
alex4nder
New Member
6
Rep
28
Posts

Drives: BMW X1 F48
Join Date: Dec 2015
Location: Greece

iTrader: (0)

Wow! Interesting! Anyway thanks washy for the reply!
Appreciate 0
      12-15-2015, 01:45 PM   #7
washy
Captain
washy's Avatar
United Kingdom
212
Rep
745
Posts

Drives: M2c/S1000RR
Join Date: Jan 2008
Location: UK

iTrader: (0)

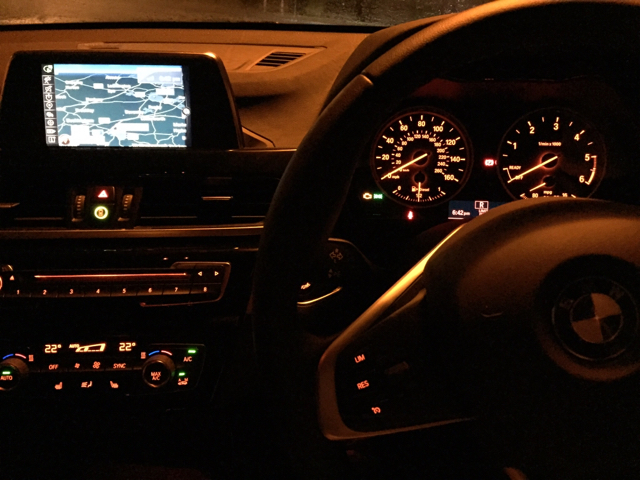

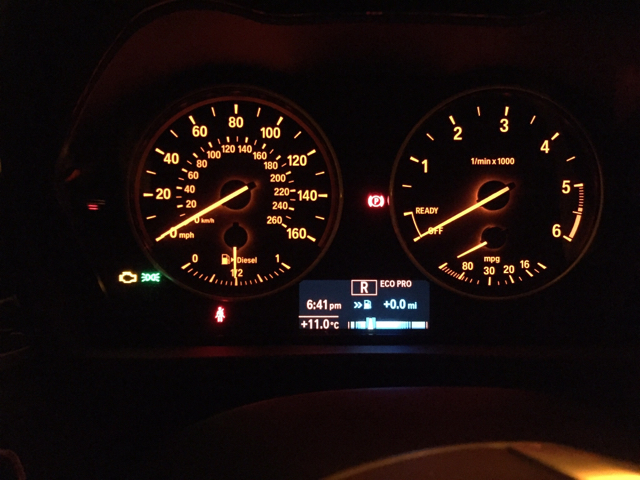

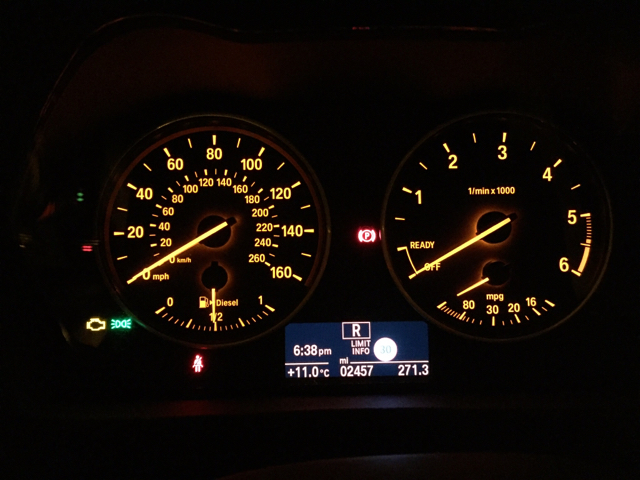

Some pics of the basic instrument display
Attached Images

__________________
'17 S1000RR , '19 M2 Competition HS
Appreciate 0
      12-15-2015, 02:30 PM   #8
alex4nder
New Member
6
Rep
28
Posts

Drives: BMW X1 F48
Join Date: Dec 2015
Location: Greece

iTrader: (0)

Really cool!
Appreciate 0
      12-15-2015, 03:32 PM   #9
did75
Private First Class
24
Rep
110
Posts

Drives: 2016 f48 x1 xline (eu spec)
Join Date: Oct 2010
Location: Paris, France

iTrader: (0)

Quote:
Originally Posted by alex4nder View Post
Went to the dealer and sorted it out. Here is how it goes, at least for configurations in my country. I am talking about the display positioned between the rev. dial and the speed dial. Models WITHOUT navigation NOR driver assistant get a display with amber indications.
Models WITHOUT navigation WITH driver assistant get the extended instrument cluster wich includes this display in coloured indications.
Models WITH entry level 6,6 navigation WITHOUT driver assistant get a coloured display.
Models WITH entry level 6,6 navigation WITH driver assistant get the extended instrument cluster wich includes this display in coloured indications.
Models WITH 8,8 navigation WITH/WITHOUT driver assistant get the extended instrument cluster wich includes this display in coloured indications.
Useful piece of information for me as I did not go for the 8,8 navigation nor for the driver assistant but I wanted the display to be in colour as it feels more upmarket and modern !
Cheers
Hi

Also has the same questions about display / extended display. I confirm those combinations, at least mine (6.6 nav with driver assistant +)

Never heard of the small amber display though
Appreciate 0
      12-15-2015, 03:39 PM   #10
Bluezed
Bluezed
United Kingdom
71
Rep
170
Posts

Drives: X1 25d xLine MG
Join Date: Nov 2015
Location: West Sussex

iTrader: (0)

Is anyone able to post some pictures of the extended display?
Appreciate 0
      12-15-2015, 05:20 PM   #11
alex4nder
New Member
6
Rep
28
Posts

Drives: BMW X1 F48
Join Date: Dec 2015
Location: Greece

iTrader: (0)

@did75 when I said about the small amber display I had in mind the one washy posted. I never knew that it was half amber half coloured. I also didn't know that you could have road signs without the driving assistant or driving assistant plus. Anyway maybe I misunderstood about the displays and confused you and there is no such thing like a small only amber. But I think that today at the dealership I saw a car without the 8,8 navi(just the 6,6) and without the driving assistant, that was coloured not just half amber half coloured. In case I am wrong, I would like to apologize in advance for all this unnecessary fuss !

Last edited by alex4nder; 12-23-2015 at 03:34 PM..
Appreciate 0
      12-15-2015, 05:38 PM   #12
did75
Private First Class
24
Rep
110
Posts

Drives: 2016 f48 x1 xline (eu spec)
Join Date: Oct 2010
Location: Paris, France

iTrader: (0)

Quote:
Originally Posted by alex4nder View Post
@did75 when I said about the small amber display I had in mind the one washy posted. I never knew that it was half amber half coloured. I also didn't know that you could have road signs without the driving assistant or driving assistant plus. Anyway maybe I misunderstood about the displays and confused you and there is no such thing like a small only amber. But I think that today at the dealership I saw a car without the 8,8 navi(just the 6,6) and without the driving assistant, that was coloured not just have amber have coloured. In case I am wrong, I would like to apologize in advance for all this unnecessary fuss !
No worry, no fuss either :-)

I also has the same questions while waiting for my car to arrive.

I can post a picture tomorrow
Appreciate 0
      12-15-2015, 05:43 PM   #13
did75
Private First Class
24
Rep
110
Posts

Drives: 2016 f48 x1 xline (eu spec)
Join Date: Oct 2010
Location: Paris, France

iTrader: (0)

Quote:
Originally Posted by did75 View Post
No worry, no fuss either :-)

I also has the same questions while waiting for my car to arrive.

I can post a picture tomorrow

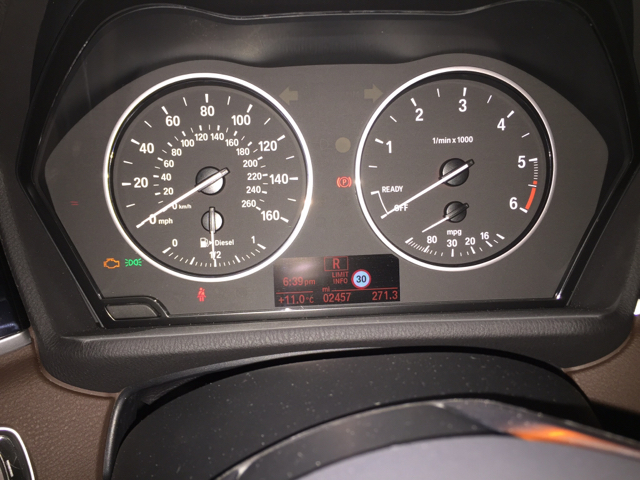

Or a (very poorly taken) one right now :-) displays mainly Amber when lights are on, mainly white when they are not.

I'll shoot the various displays with a proper camera
Attached Images

Appreciate 0
      12-15-2015, 05:46 PM   #14
AusF20/F48
Major
AusF20/F48's Avatar
Australia
120
Rep
1,233
Posts

Drives: F20 125i MS, F48 XD25i
Join Date: May 2012
Location: Brisbane

iTrader: (0)

My X1 will arrive in early January.
It has the 8.8" display/pro nav etc with extended display
If no one else post pics I will take some pics of my displays for you
Appreciate 0
      12-15-2015, 05:50 PM   #15
alex4nder
New Member
6
Rep
28
Posts

Drives: BMW X1 F48
Join Date: Dec 2015
Location: Greece

iTrader: (0)

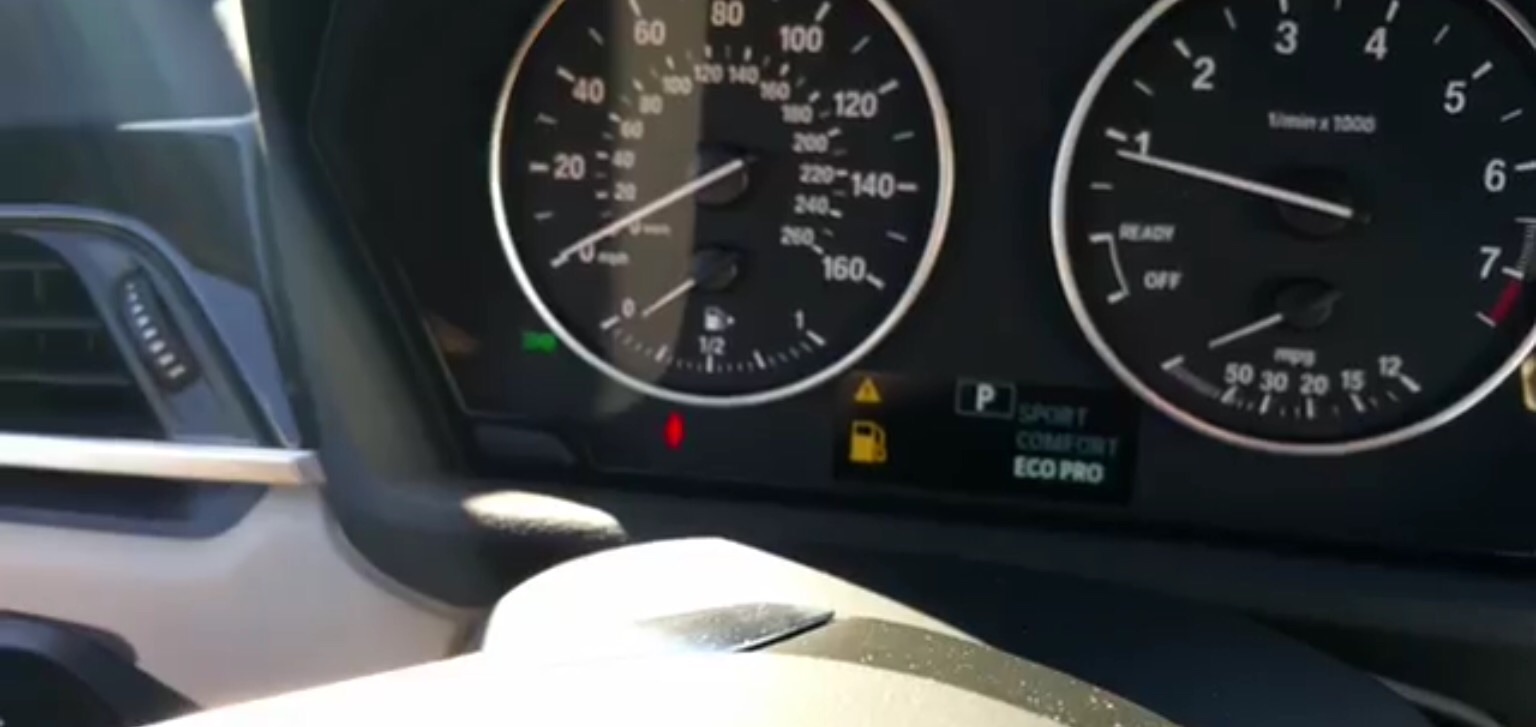

It is getting more interesting. This is something that I found on the net, and what I am almost sure I saw today at the dealership.
Attached Images

Appreciate 0
      12-16-2015, 01:45 AM   #16
M-Nick
Private
M-Nick's Avatar
35
Rep
91
Posts

Drives: BMW
Join Date: Dec 2015
Location: SE

iTrader: (0)

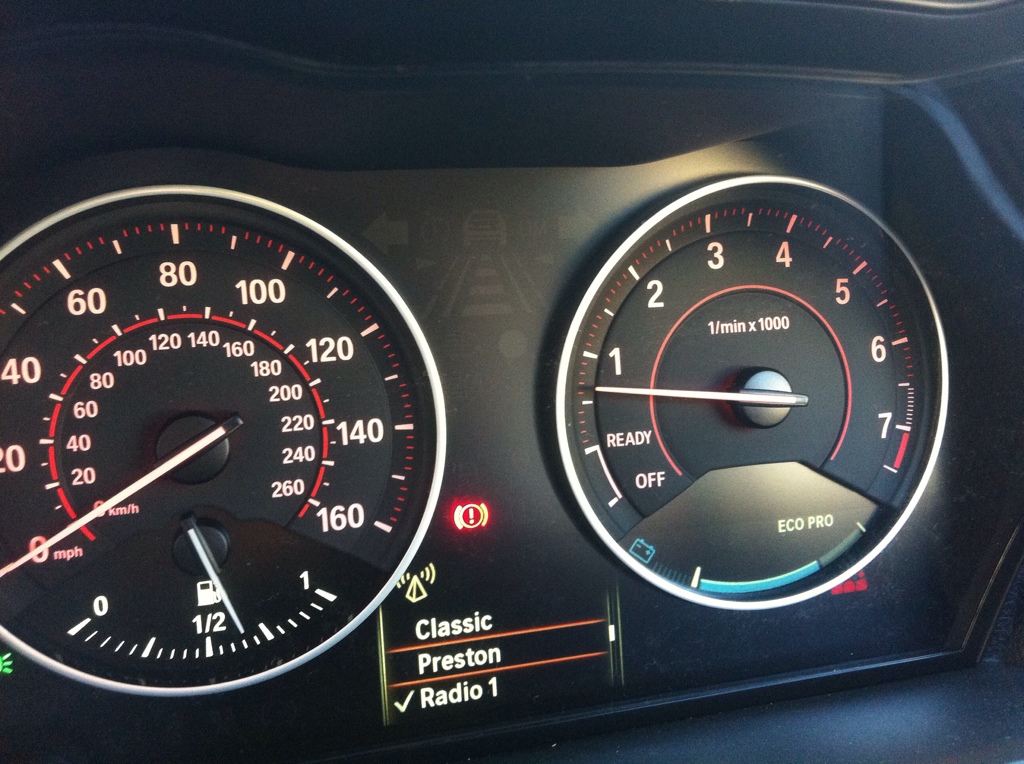

Name:  x1.jpg
Views: 5219
Size:  330.0 KB

Name:  x11.jpg
Views: 6859
Size:  79.9 KB

Name:  x111.jpg
Views: 5581
Size:  223.1 KB
Appreciate 0
      12-16-2015, 03:43 AM   #17
alex4nder
New Member
6
Rep
28
Posts

Drives: BMW X1 F48
Join Date: Dec 2015
Location: Greece

iTrader: (0)

Thank you M-Nick for the extended display photos !
Appreciate 0
      12-17-2015, 07:29 AM   #18
alex4nder
New Member
6
Rep
28
Posts

Drives: BMW X1 F48
Join Date: Dec 2015
Location: Greece

iTrader: (0)

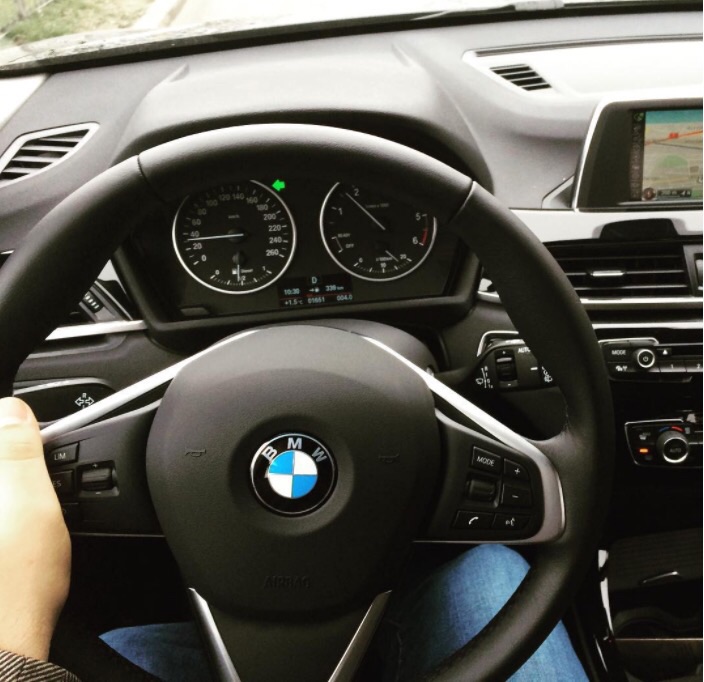

Here is one more pic. As we can see this car does not have driving assistant nor the 8,8 navigation, just the entry level navigation. I am kind of confused with all these displays and combos of BMW. It is like trying to solve sudoku !
Attached Images

Appreciate 0
      12-17-2015, 07:49 AM   #19
did75
Private First Class
24
Rep
110
Posts

Drives: 2016 f48 x1 xline (eu spec)
Join Date: Oct 2010
Location: Paris, France

iTrader: (0)

Quote:
Originally Posted by alex4nder View Post
Here is one more pic. As we can see this car does not have driving assistant nor the 8,8 navigation, just the entry level navigation. I am kind of confused with all these displays and combos of BMW. It is like trying to solve sudoku !
Makes sense. Basic setup and none of the required options to get extended display = small color display.

There are only 2 setups : this one and the black panel pictures before. I don't think there is a 3rd combination
Appreciate 0
      12-17-2015, 08:19 AM   #20
washy
Captain
washy's Avatar
United Kingdom
212
Rep
745
Posts

Drives: M2c/S1000RR
Join Date: Jan 2008
Location: UK

iTrader: (0)

Quote:
Originally Posted by alex4nder View Post
Here is one more pic. As we can see this car does not have driving assistant nor the 8,8 navigation, just the entry level navigation. I am kind of confused with all these displays and combos of BMW. It is like trying to solve sudoku !
That is the same as the one we have. did75 is correct there are only the two versions.
__________________
'17 S1000RR , '19 M2 Competition HS
Appreciate 0
      12-17-2015, 10:07 AM   #21
alex4nder
New Member
6
Rep
28
Posts

Drives: BMW X1 F48
Join Date: Dec 2015
Location: Greece

iTrader: (0)

washy is this the same as the one you have in your car? In the pics you posted except from some info shown in colour, other things such as the gear engaged or the clock are in amber. In the pic above if am not mistaken the colour seems like white or something else like light cyan or so.
Appreciate 0
      12-17-2015, 10:33 AM   #22
washy
Captain
washy's Avatar
United Kingdom
212
Rep
745
Posts

Drives: M2c/S1000RR
Join Date: Jan 2008
Location: UK

iTrader: (0)

Quote:
Originally Posted by alex4nder View Post
washy is this the same as the one you have in your car? In the pics you posted except from some info shown in colour, other things such as the gear engaged or the clock are in amber. In the pic above if am not mistaken the colour seems like white or something else like light cyan or so.
White during the day,amber at night. Even the climate control display changed from white to amber at night.
__________________
'17 S1000RR , '19 M2 Competition HS
Appreciate 0
